Creating and Adding Instances to a Group
This guide will cover how to create Instances and assign them to Groups on the Screens Controller application.
1

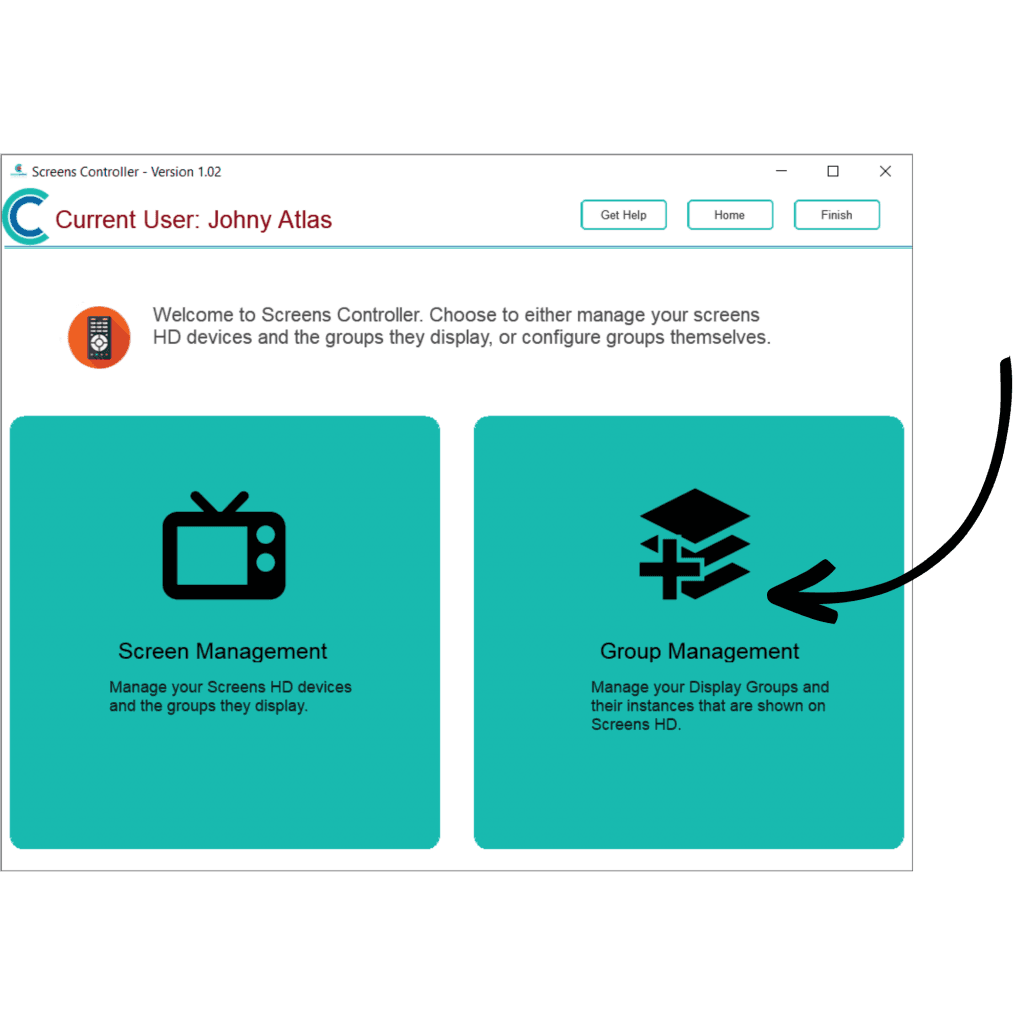

After signing into CC Screens Controller, select Group Management.
2
Select the group you wish to add instances to. Simply tap the Group Name.
3

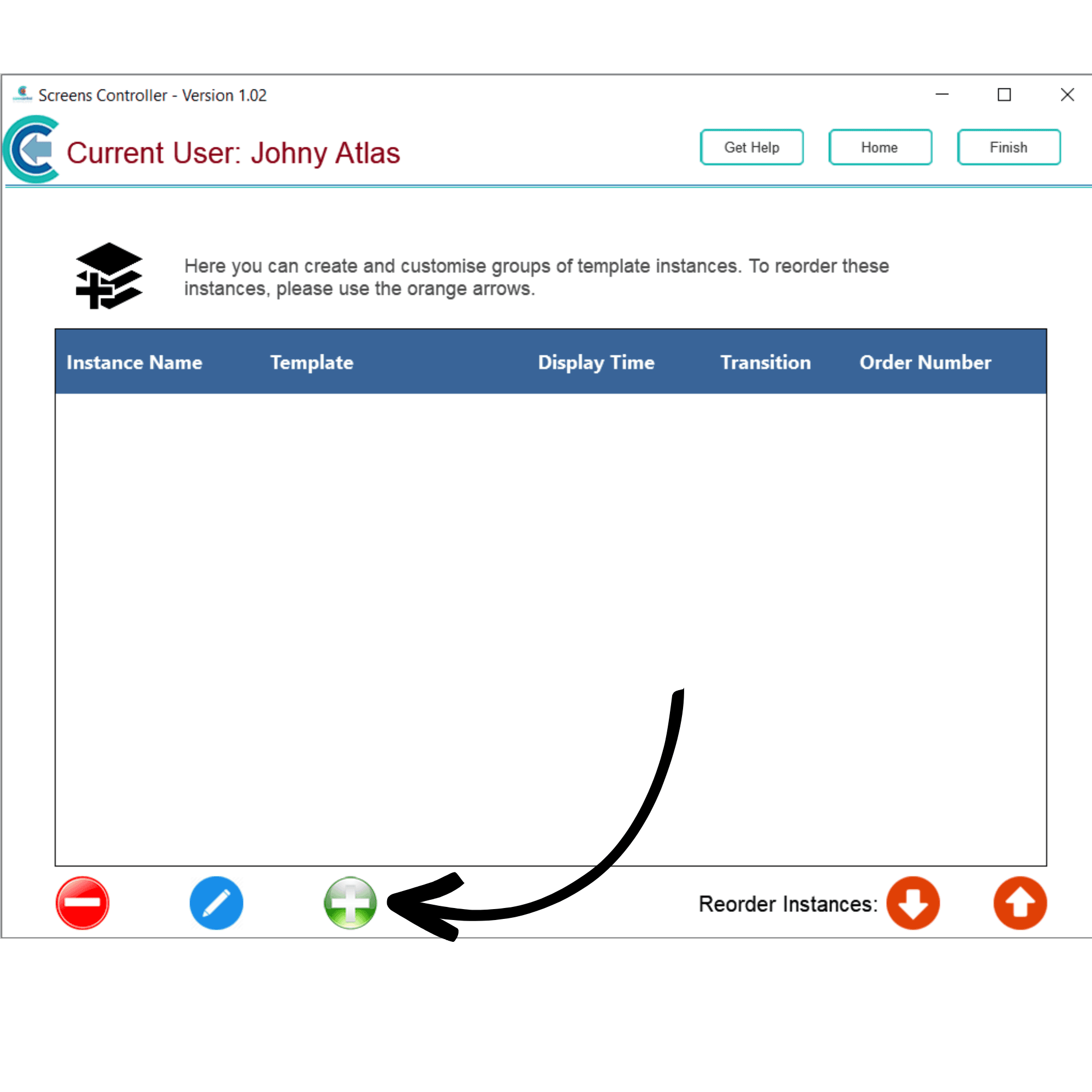

A new window will open. Here, you can add, edit or remove instances from the group. To add a new one, press the Green + symbol.
4

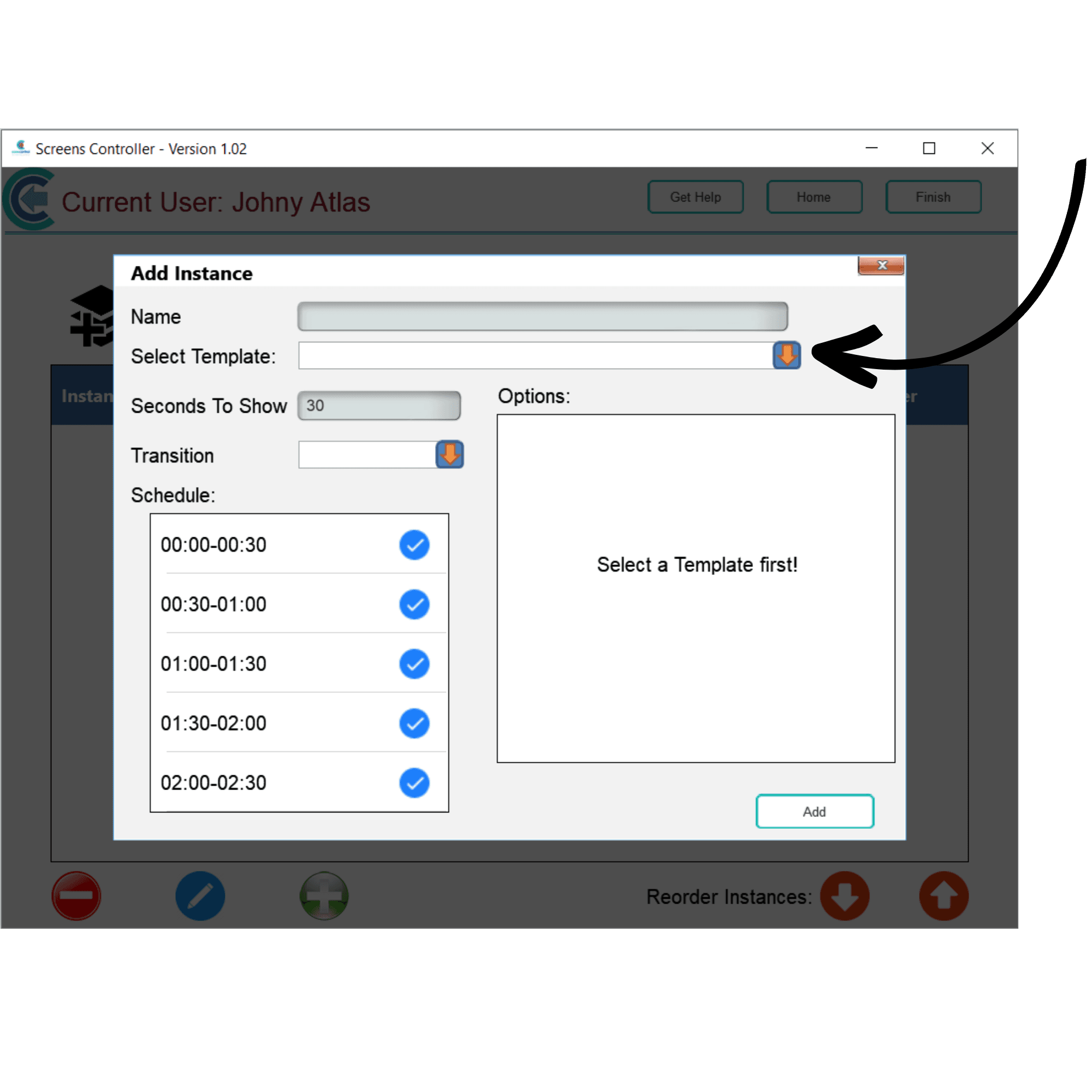

Enter a name for the instance, as well a time for the instance (seconds to show). You can also select schedule options for which times of the day this instance will be shown. By default, all times are selected.
Next, select a Template, using the drop-down list.
5

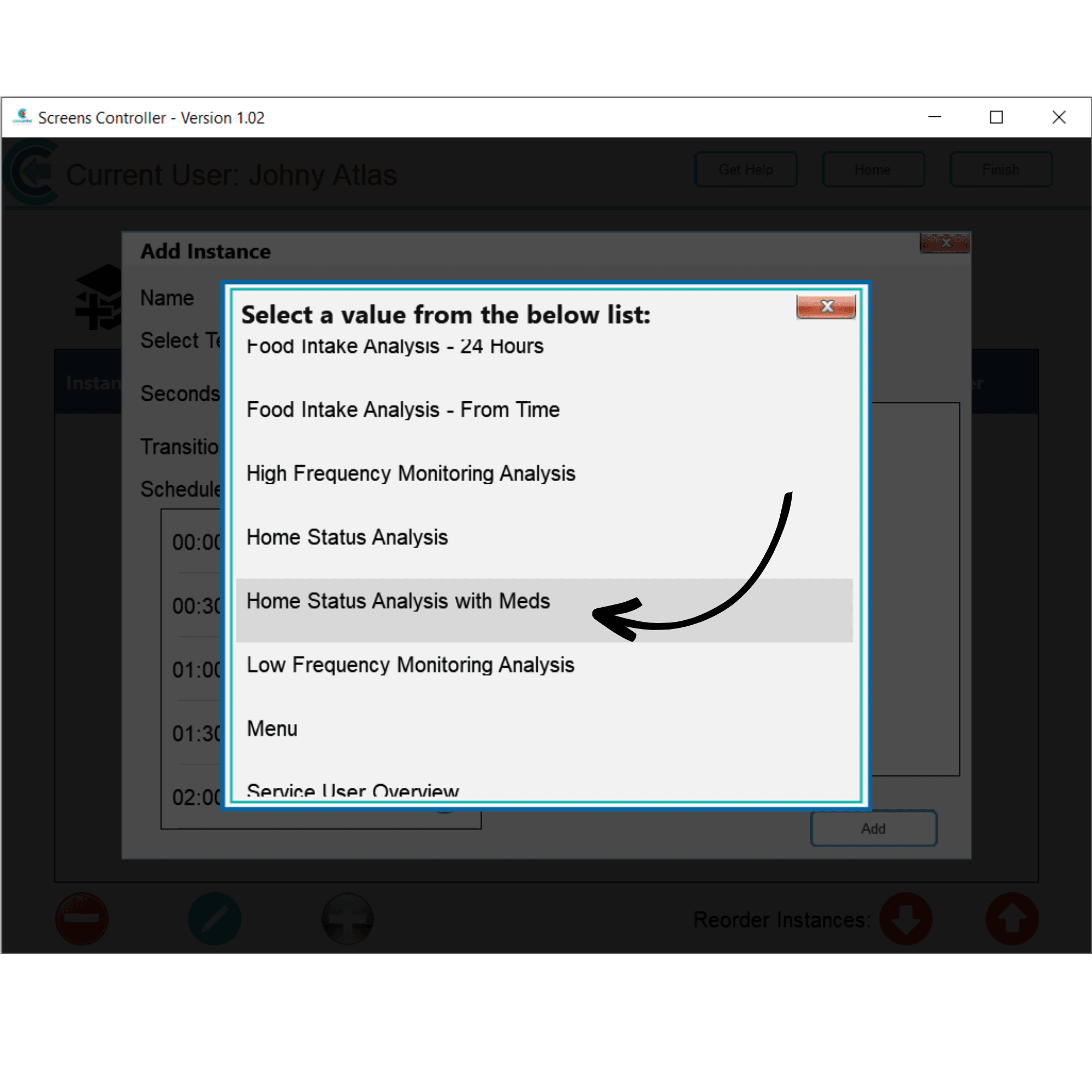

In this example, we will select Home Status Analysis with Meds.
6

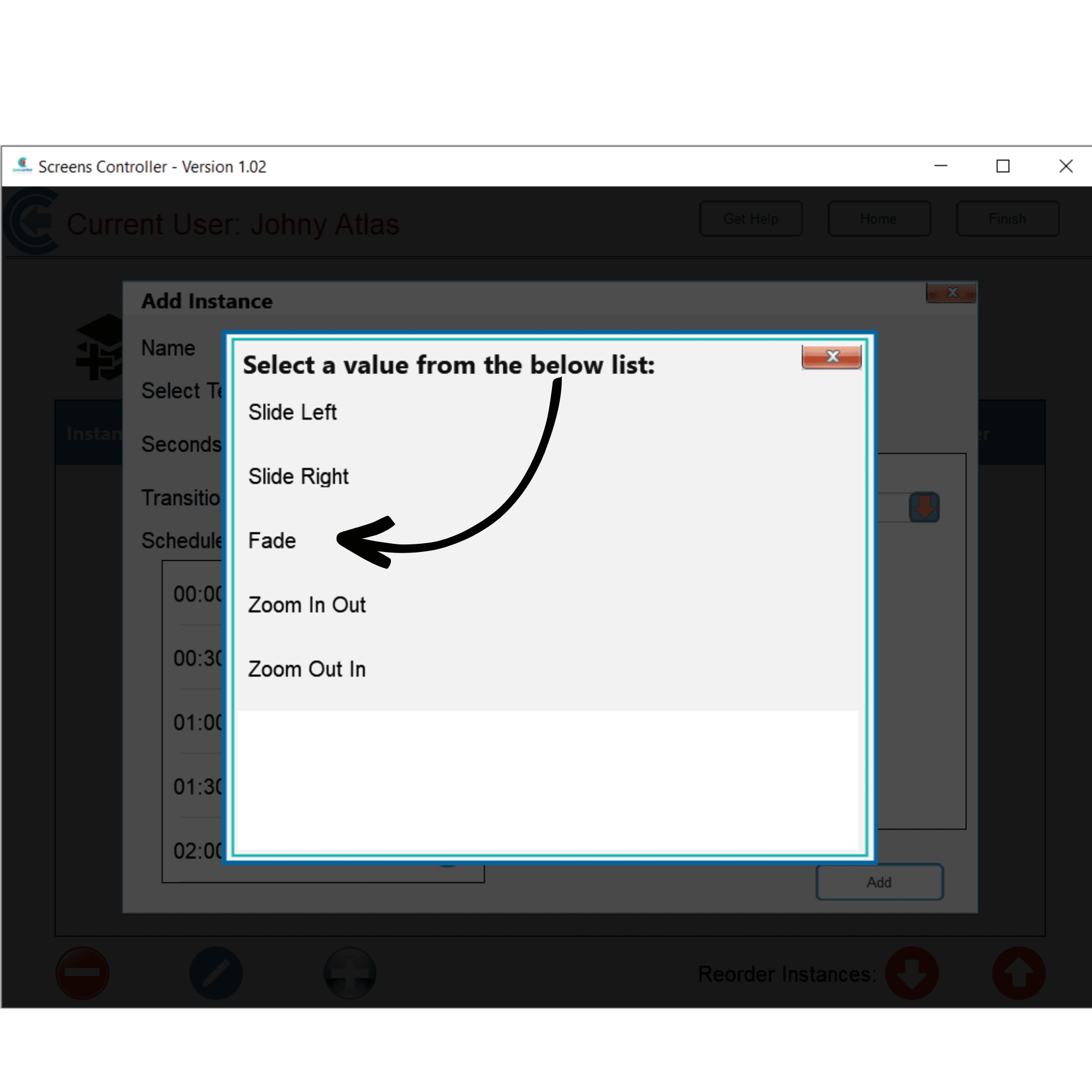

Next, select a Transition. In this example, we will choose Fade.
7

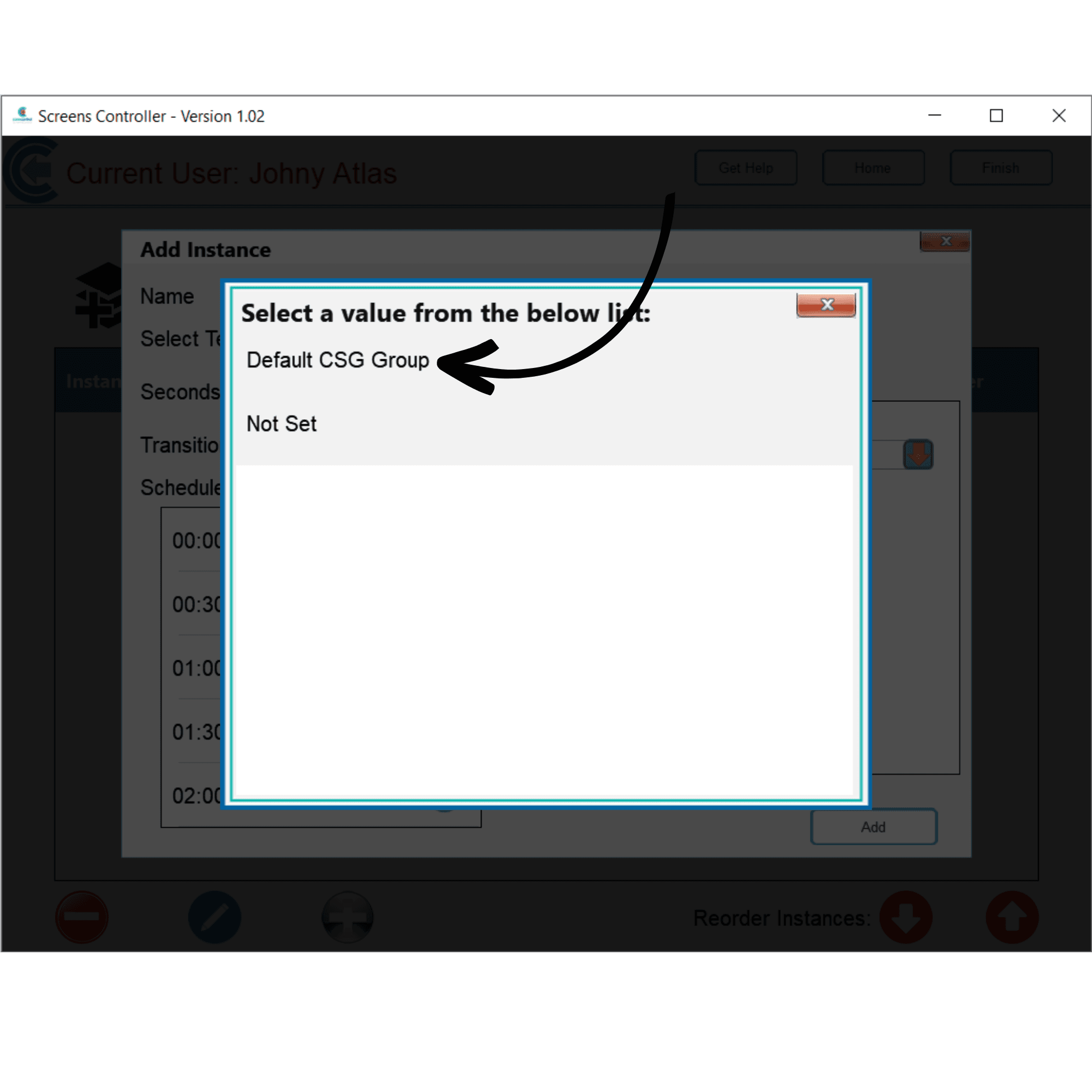

Finally, select a CSG to show information for. In this example, we will choose Default CSG Group.
After setting up the instance, press Add.
8

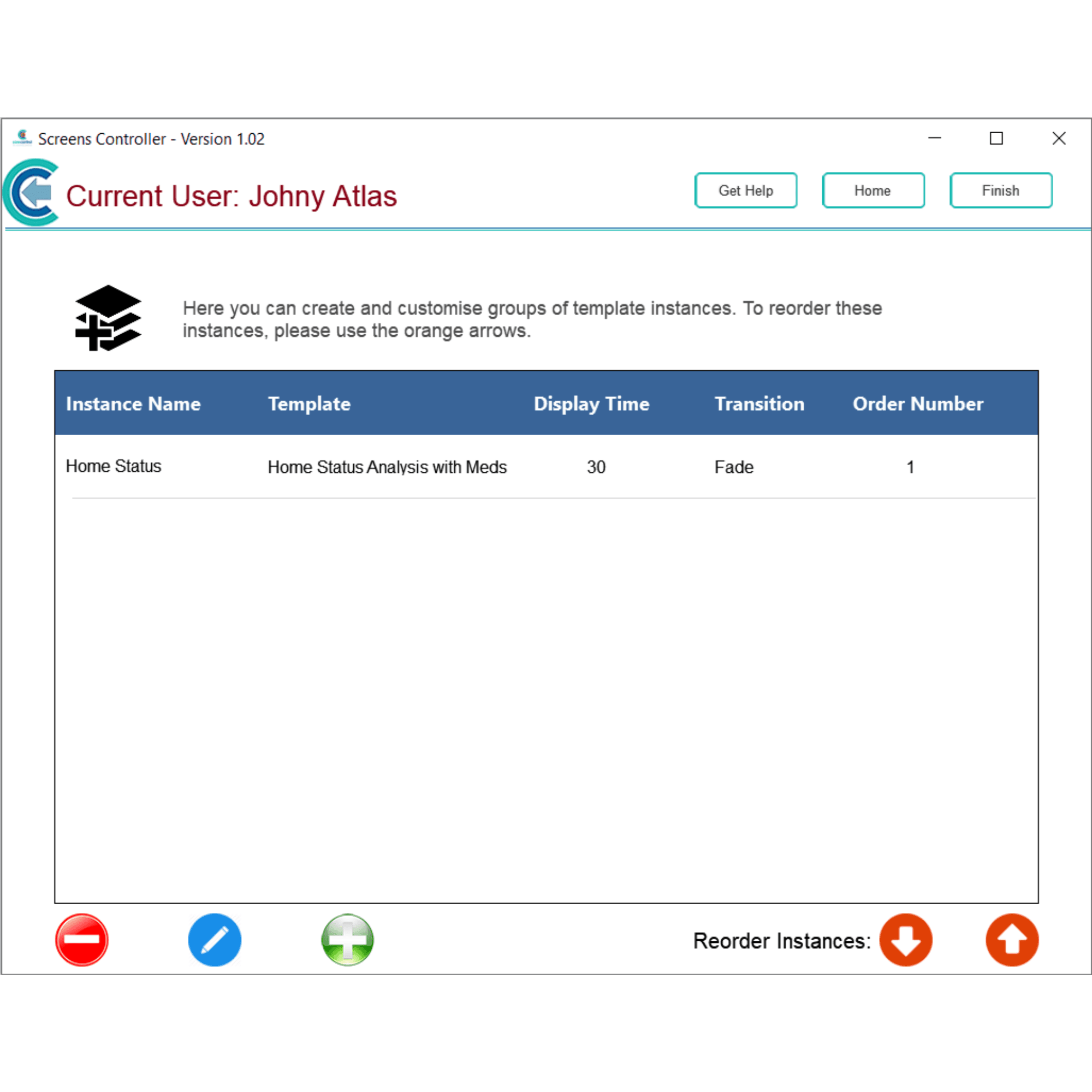

Your new instance will be displayed in the group.
